Adjustable Linear Actuator are ruggedly designed and produced in standard models with thrust capacities from 500 lbs. To 40,000 lbs. They are supplied in a Single Reduction, Double Reduction, or an In-Line Configurations. Electric Cylinders are intended for use in industrial environments and feature ground and hard chrome plated actuator tubes with industrial enamel paint on exterior surfaces. Heavy duty electric cylinders can be supplied for outdoor applications.
TJE040:50-200mm
TJE065:50-250mm
TJE075:50-600mm
TJE095:50-800mm
TJE110:50-1000mm
TJE135:50-1200mm
TJER160:50~1500mm
TJER190:50~2000mm
TJER220:50~2500mm
TJER250:50~3000mm
Screw Lead:
TJE040:4mm
TJE065:4, 5, 10, 16,20mm
TJE075:4, 5,10, 20, 40mm
TJE095:4, 5, 6, 8, 10, 25mm
TJE110:5, 6, 8, 10, 20, 32mm
TJE135:10, 20, 50mm
TJER160:10,20mm
TJER190:10,20mm
TJER220:10,20mm
TJER250:10,20mm
Maintenance free,Compact structure,low inertness, less noise ,fast response,long working life
| Questions | Answers |
| How much is your minimum order quantity? | 1 piece.We have confidence that you are satisfied with our production. |
| What's the price of the product? | The price is based on the size,specification and accessories. You can provide us the detailed information and specific requires then we will make the model selection for you and give you the formal offer. |
| Which conturies and regions do your products export to? | Germany,Spain,Italy,Brazil,Mexico,Japan,Iran,India and etc.Mainly used for warp knitting machine and preesing machine.By the way,many customers replace hydraulic cylinders and air cyinders with our servo electric cylinders. |
| Could you offer us free samples? | Sorry we can't.But don't worry,we can sign trial contract with you.If you are satisfied with the production you can ask for a refund. |
| I have bought your cylinder 5 years ago, but now the accuracy is not so good, how I can deal with it? | I have bought your cylinder 5 years ago, but now the accuracy is not so good, how I can deal with it?
A: First of all, thank you very much for your trust and using our cylinder, I think the main reason is the screw inside, after about 8000 working hours, you’d better replace it with a new screw to ensure the accuracy.
The reference formula:
L10=(Ca/Fm)3×L
★ L10: The life of the electric cylinder,unit: Km ★ Fm: Average load of electric cylinder,unit: Kn ★ Ca: Screw nut basic dynamic load, unit: Kn (can be detected by screw samples) ★ L: Screw lead,unit: mm |
Product Tags:
|
|

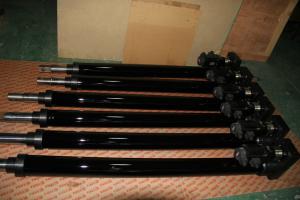

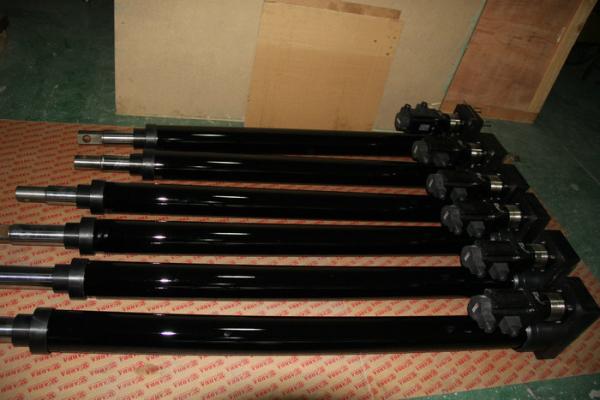

High Torque Heavy Duty Electric Cylinder For Armored Vehicle Swing Platform Images
|
